Photoluminescent Pigment
LC-G1S-N
Inorganic photoluminescent pigment LC-G1S-N avails itself of fluorescent substances that can remain luminous in the dark. It absorbs the light energy from sunlight, a fluorescent lamp, an incandescent lamp or other light source and gradually releases the energy and emits light in the darkness.
Safety signs such as evacuation exit sign, evacuation direction sign as well as the toys can be made which radiate light in a dark.

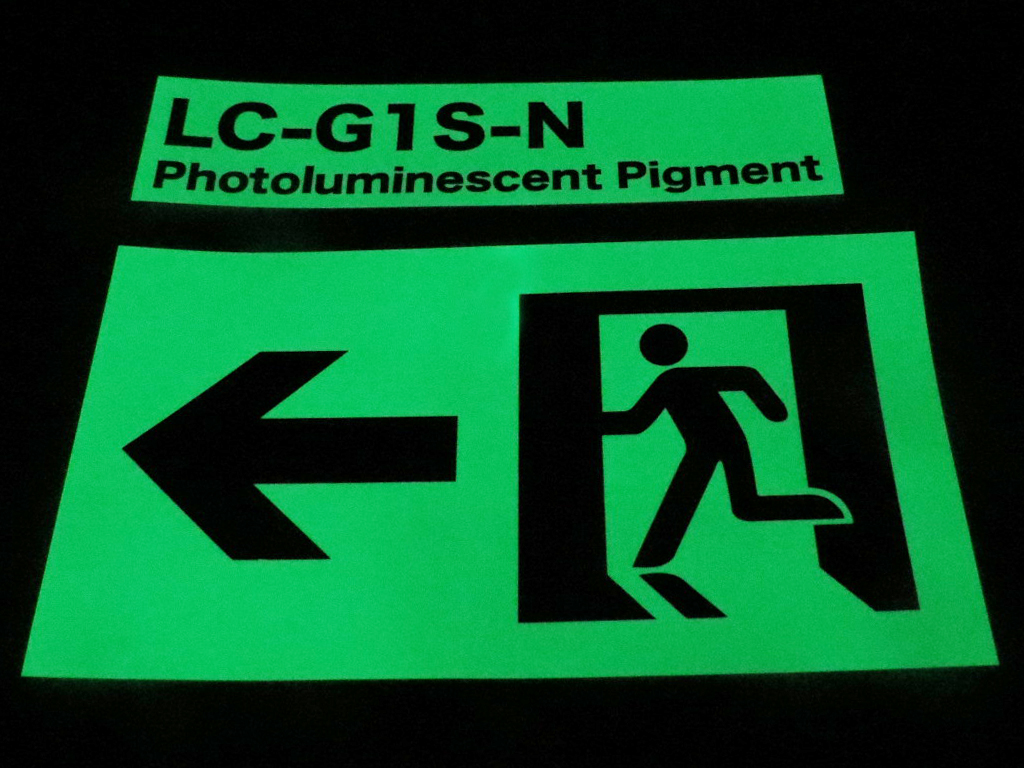

Above photographs show “LOIHI TAPE #200 Adhesive Tape”, made of a film uses LC-G1S-N pigment coating and processed with screen printing.
| SPECIFICATIONS | |
|---|---|
| Ingredient | ZnS:Cu |
| Color | Milky-White |
| Glowing Color (Luminescence) | Yellow Green |
| Gravity | 4.1 |
| Average Particle Size | 10～16μm |
| Afterglow Brightness | 10min: 27mcd/㎡ 60min: 3mcd/㎡ |
| Solvent | Infusibleness to all solvents |
| Aqueous | ○ |
| Resin Coloring | ○ |
| Exterior Use | NG |
| Molding temperature | Below 1000℃ |
| Packaging | Paper Bag |
| Net Weight | 1kg or 20kg |
*In conformity to DIN-67510 (Xe 1000Lx 5-minutes Irradiation)
FEATURES
- Suitable for Luminous Safety Signs, Labels and Toys etc. The exposure to green light for about 20 minutes.
- The surface discolors black and decrease of the light brightness when continuously irradiating with a Black-Light.
APPLICATIONS
- Paints
- Inks
- Films, and other Various Applications
